Technical Description

• Supply Voltage: 12-24Vdc
• Standby Current: <50mA
• Communication BUS: FTCAN 2.0
• CAN connector: 1 Molex male, 1 Molex female
• Switch Life: million operations
• Material: Silicone rubber with polyurethane hard coat
• Mounting Studs: #10-32 (3/16”x32)
• Ingress protection Rating: IP67/NEMA6

Dimensions: 6.12 x 1.56 x 0.82 in

Contents of Packaging

• 1 SwitchPanel-5 Mini
• 1 Harness for installation
• 1 Operation and installation guide
• 1 Mounting kit (2x #10-32 nuts & washers)
• 1 SwitchPanel

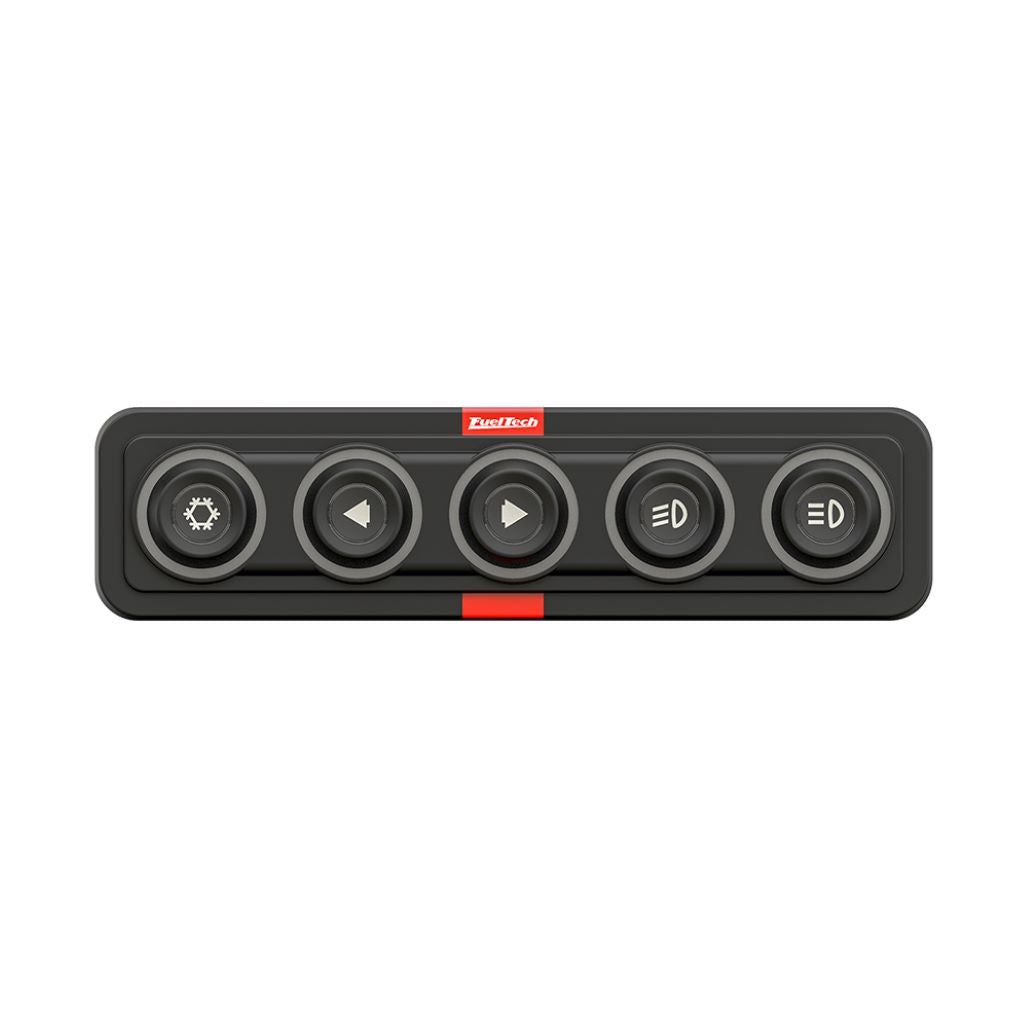

• The SwitchPanel-4 Mini, SwitchPanel-5 Mini and SwitchPanel-8 Mini deliver style and function in one. The compact size allows it to be installed almost anywhere, even in tight spaces, with the included mounting hardware. Available with 4, 5 or 8 buttons, each SwitchPanel Mini comes with 55 printed function decals and 10 blank decals, allowing you to create custom labels. LED backlighting for each button is pre-defined by feature, making it easier to identify the correct button while behind the wheel.
