Designed For Drag Racing Only

Pro Gears may be necessary when tooth breakage occurs with Standard gear sets
Produced from a softer material, the teeth can flex as opposed to crack and break

The life expectancy can vary anywhere from 15 to 300 runs depending on the vehicle
If a Standard gear provided acceptable life, a Pro gear may not be the right choice

Machined From 9310 Forged Steel
Heat Treated to Optimize Material Properties

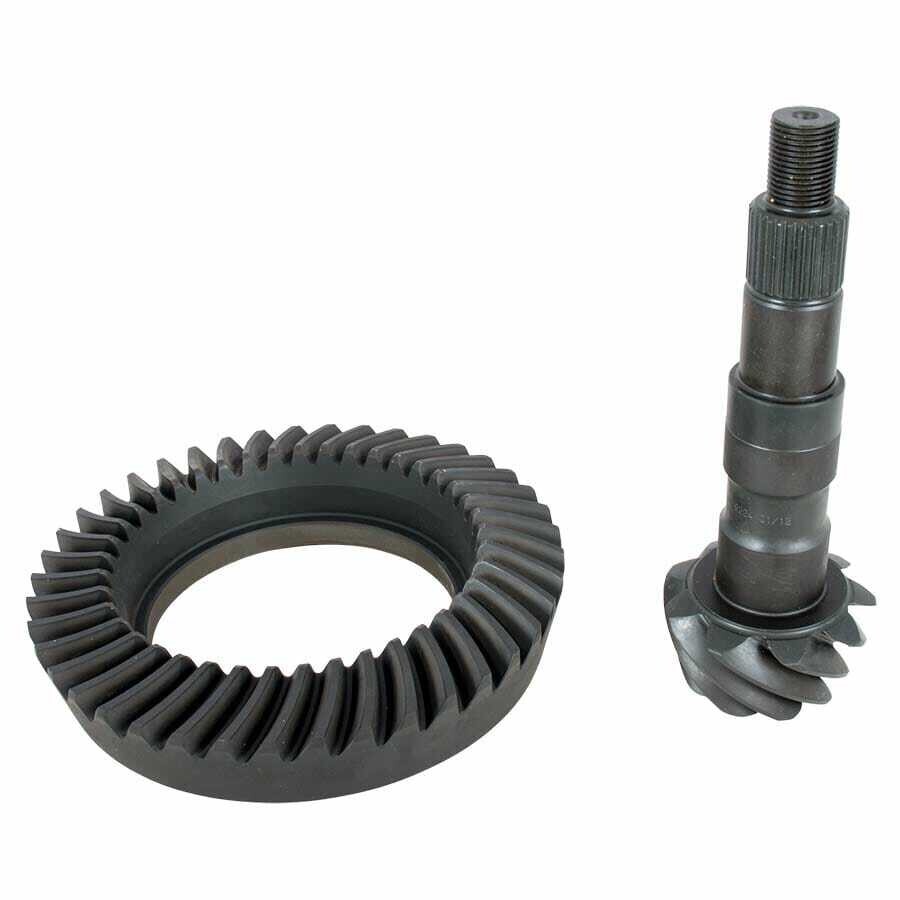

Matched Ring & Pinion Set

Ring Gear
– 9″ OD
– Tooth count 30
– 10 bolt holes in each bolt size
– 7/16″-20 RH threads & 1/2″-20 RH threads

Pinion
– 35 spline shaft
– Tooth count 7
– 1″-14 RH threads

Note
35 Spline Pinions Require Capable Pinion Supports
Will Not Fit OEM Or Daytona Style Supports
