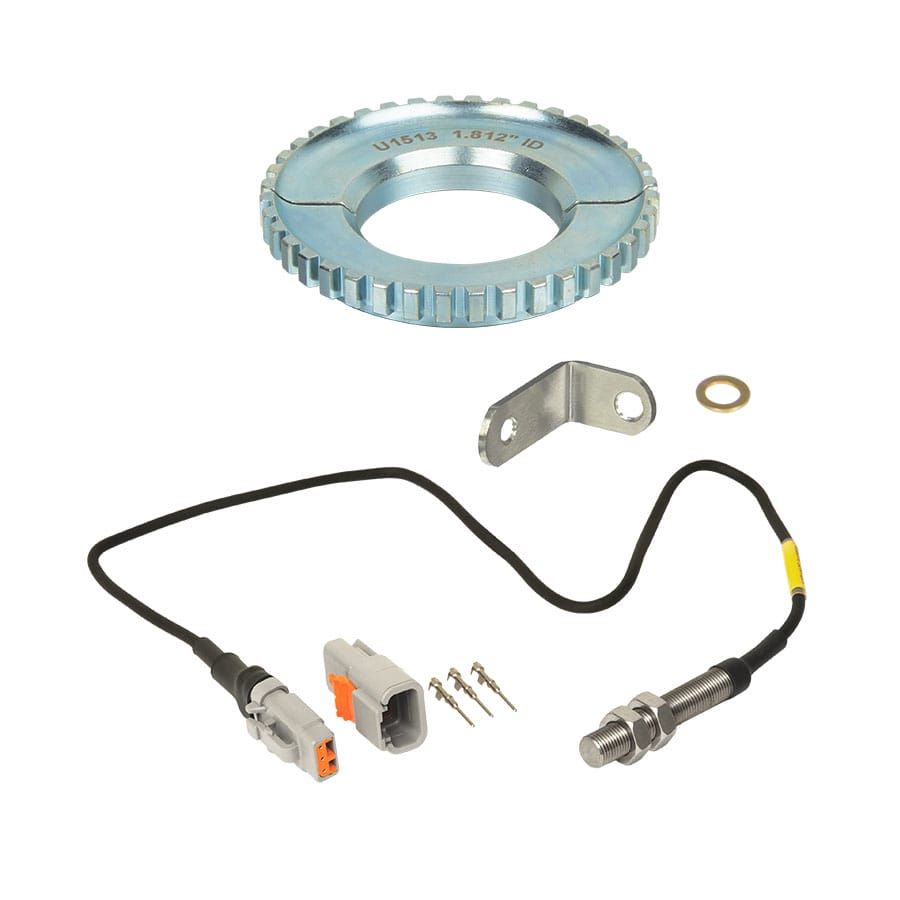

Part Number: U1613-T

For Ford 9″ Pinion Supports Listed Below

• OEM Ford

• Ford Daytona – N1914

• Strange – N1917 / N1920 / N1922 *

* For N1922 using 35 spline yoke – See U1614-T

Yoke With Dust Shield

Dust shield must be removed and discarded

Design

Provides driveshaft speed information to data acquisition systems

Offers high resolution due to 40 tooth trigger wheel

Produces smooth and easy to read graphs when comparing to other data

Hall Effect Sensor Assembly

• High precision zero speed design

• Industry standard 3/8″-24 fully threaded body

• Stainless steel housing – more durable than aluminum bodies

• Proven reliability in top fuel cars

• Made in the USA

• Requires 4.5-26 VDC supply voltage

• 0-15kHZ operating frequency

• Terminated with Deutsch DTM plug

• Includes mating Deutsch DTM receptacle with pins

• One jam nut provided with sensor

Trigger Wheel

• High resolution 40 tooth trigger wheel

• Plated for corrosion resistance

• Split design with SHCS bolts

Sensor Mounting Bracket

• Stainless steel resists corrosion

• Attaches to existing pinion support bolt

• Supplied with support bolt spacer washer

• Includes additional sensor jam nut
