FEATURES

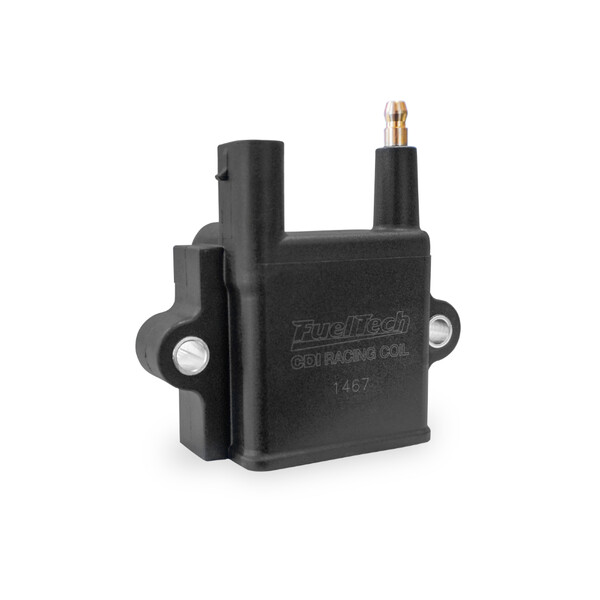

• The FuelTech CDI Racing Ignition Coil is made to be used with our FuelTech FTSPARK ignition module with individual coil per cylinder and also rotary applications
• This coil is made for Capacitive Discharge Ignition only and can not be used with a inductive ignition driver
• Only compatible with FuelTech FTSPARK
• Not compatible with FuelTech SparkPRO

TECHNICAL DESCRIPTION

• Specifications
  Primary resistance: 0.09 OHM +- 10%
  Primary inductance: 0.78 mH +- 15%
  Secondary resistance: 988 ohm +- 15%
  Secondary inductance: 3.7 H +- 15%
  Leakage inductance: 0.057 mH +- 10%
  Test voltage: 470 Vdc
  Output (no load): 44 kV MIN
  Turns ratio: 70:1
